HVAC Install Checklist: What to Include (+ Free Template You Can Use)

A customer calls two weeks after a new AC install because the upstairs won't cool, the condensate line is leaking, and the thermostat was never set up. Now your service tech is back on a job your install crew has already closed out.

An HVAC install checklist makes sure techs complete every step before they leave the job. You get a record of the work, the same quality on every install, and proof of the value behind your price.

In this article, we’ll discuss what an HVAC install checklist should include and the challenges HVAC teams face without one. We’ll also include a ready-to-use HVAC install template for your team.

What Is an HVAC Install Checklist?

An HVAC install checklist is a step-by-step document your techs follow to install heating and cooling equipment the same way on every job. It covers each phase of the install and includes space to record key readings like vacuum, charge, and static pressure. A properly completed HVAC install checklist gives you a record of the work for callbacks, inspections, and warranty claims.

HVAC Install Checklist at a Glance

An HVAC install checklist covers six phases, from pre-install planning to the customer walkthrough. Here's what to check and which readings to record in each one.

Challenges Teams Face With HVAC Installations

HVAC installs go wrong when steps get skipped, vary by tech, or rest on bad information from the sales visit. Most installs pass through three sets of hands: the comfort advisor, the office, and the install crew. Each handoff is a chance for something to slip.

Here's where it breaks down:

Installers Cut Corners Under Time Pressure

Installers cut corners to finish the job and move on to the next one. They skip standard checks like pressure tests and leak checks. The problems those checks would catch show up later as callbacks.

Inconsistent Install Steps Across Different Techs

Experienced techs know to flush an old line set, level the pad, and set the blower speed for the ductwork. None of it is written down because they've never needed it written. That works until you hire help or bring in a sub for peak season. Then results start to vary by who's on the job.

No Documented Load Calculation for Sizing Equipment

Many HVAC contractors size new equipment by matching the old unit's tonnage. They skip the Manual J because the job feels routine or the schedule is tight. But the home may have changed since the last install: new insulation, replaced windows, or a finished addition. Matching the old tonnage means the new system is sized for a house that no longer exists. A wrong-sized system short-cycles, struggles with humidity, and generates callbacks.

Missing Site Conditions During the Pre-Install Visit

A rushed site visit often misses key details. Techs may overlook an undersized electrical panel, a cracked pad, or a tight attic space. These surprises show up on install day and add hours the estimate never covered.

How Does an HVAC Install Checklist Help Field Service Teams?

An HVAC install checklist turns each job into a repeatable process. Every tech follows the same steps in the same order. They can keep the install checklist on a tablet, phone, or clipboard that goes with every job. Before leaving, the tech works through it as a final verification pass. Anything that fails gets fixed while the tools are still on site, which costs less than a second trip.

The checklist can include readings and photos, so every install leaves a record. For example, a final micron reading, charge data, and equipment serial numbers give you proof when a warranty claim gets questioned. The same record helps at permit inspection and gives whoever runs the first tune-up a baseline to work from.

A written checklist also makes it easier to add more technicians. When you hire your first installer or bring in help for peak season, the checklist shows them your process in the order the job runs. You can review their first few checklists and catch gaps before those gaps reach a customer.

What to Include in an HVAC Install Checklist

An HVAC install checklist covers six phases: pre-install planning, site prep, connections, evacuation and charging, startup, and closeout. Here’s a complete breakdown of each phase:

Pre-Install Planning

Most install-day surprises can be caught during the estimate visit. This phase confirms the equipment, the space, and the paperwork are ready before anyone loads the truck.

• Manual J load calculation completed and saved to the job
• Indoor and outdoor units form an AHRI-matched system (record the AHRI reference number)
• Refrigerant type recorded and matched to the new equipment
• Permit pulled and inspection requirements noted
• Circuit and breaker size match the new unit's nameplate minimum circuit ampacity (MCA) and maximum overcurrent protection (MOCP)
• Line set decision made to reuse, flush, or replace (record the length)
• Access checked for attic hatches, crawlspaces, and roof or crane access on commercial jobs
• Model numbers on the delivered equipment match the order

Site Prep and Equipment Removal

EPA Section 608 prohibits venting refrigerant, so a certified tech recovers the old charge before any lines are cut. The work area also needs protection before the old unit comes out.

• Power off and locked out at the disconnect and panel
• Gas shut off at the appliance valve on furnace replacements
• Refrigerant recovered into a marked recovery cylinder by an EPA 608-certified tech
• Floors, walls, and walkways covered
• Old equipment removed and new pad leveled and sized for the condenser
• Existing ductwork, returns, and drain line checked for damage or undersizing

Equipment Setting and Connections

Many long-term install problems start with connections made in this phase. Each one should match the manufacturer's installation manual and local code.

• Outdoor unit clearances meet manufacturer specs on all sides and above
• Indoor unit level or pitched toward the drain per manufacturer
• Nitrogen flowing through the lines during brazing
• Flare connections torqued to spec on mini-splits
• Condensate trap installed, drain pitched and float switch wired
• Secondary drain pan installed for attic or above-ceiling units
• Disconnect installed within sight of the outdoor unit
• High-voltage wiring sized to the nameplate and unit grounded
• Low-voltage wiring connected and labeled at the air handler and thermostat
• Gas piping leak-tested and vent pitched with correct clearances on furnaces

Pressure Testing, Evacuation and Charging

This phase decides how long the compressor lasts. Record every number here, since these readings back up a warranty claim if something fails later.

• Standing nitrogen test held at the manufacturer's test pressure (record starting psig, ending psig, and hold time)
• Vacuum pulled to 500 microns or lower (record the final reading)
• Decay test passed after isolating the pump (record the micron rise over the hold period)
• Extra charge weighed in for line length beyond the factory charge (record ounces added)
• Charge verified by subcooling on TXV or EEV systems or superheat on fixed-orifice systems (record target and actual)
• A2L-rated recovery machine, vacuum pump, and leak detector used on A2L systems (mildly flammable refrigerants like R-454B and R-32)

Startup and Commissioning

Startup confirms the system performs the way it was designed to. Take these readings after the system runs long enough to stabilize.

• Total external static pressure within the blower's rated range (record in inches w.c.)
• Airflow set for the system (record CFM per ton or the blower setting)
• Temperature split in cooling or temperature rise in heating within the nameplate range
• Inlet and manifold gas pressure set per the rating plate on furnaces
• Combustion analysis completed (record air-free CO and flue readings)
• Thermostat configured for the equipment, including reversing valve and auxiliary heat settings on heat pumps
• Refrigerant detection sensor tested on A2L systems
• Safety controls tested, including the float switch and high limit

Closeout and Customer Walkthrough

Closeout turns the install into a record the customer and the manufacturer can rely on. It's also the best time to set up the customer's next visit.

• Photos taken of data plates, line set connections, gauge readings, and the finished install
• All readings entered on the checklist
• Equipment registered with the manufacturer within the warranty window
• Permit inspection scheduled
• Work area cleaned and old equipment hauled away
• Customer shown thermostat operation, filter location, and filter change schedule
• Warranty paperwork and manuals left with the customer

HVAC Install Checklist Template

We’ve created an HVAC install checklist template that you can use as a starting point. It covers:

• Business and customer information: Company name, address, license number, and client contact details.
• Appliance details: Type, brand, model number, serial number, and refrigerant type.
• Pre-install planning: Load calculation, matched equipment, permit, electrical capacity, and line set decision.
• Site prep and removal: Power and gas shutoff, refrigerant recovery, floor protection, and pad leveling.
• Setting and connections: Clearances, brazing with nitrogen, condensate drain, disconnect, and wiring.
• Pressure test, evacuation, and charge: Nitrogen test pressure, final vacuum, decay test, charge added, and subcooling or superheat.
• Startup and commissioning: Static pressure, temperature split or rise, gas pressure, carbon monoxide reading, and thermostat setup.
• Closeout: Photos, warranty registration, permit inspection, cleanup, and customer walkthrough.
• Sign-off: Technician and customer signatures with dates.

Make a copy of the template here.

Want the checklist to live in your techs' app instead of on a clipboard? FieldPulse turns it into a Custom Form that attaches to every install job, with required fields so no reading gets skipped. Book a demo to see it in action.

How to Improve Service Value With an HVAC Install Checklist

An HVAC install checklist shows customers the work they can't see, which helps justify your price. Homeowners can't see most of what goes into an install. The vacuum, the brazed joints, and the charge are invisible to them. They judge the job by comfort, cleanup, and how you explain the system.

Here’s how you can use an HVAC install checklist to show customers the value of your work:

Share the Completed Checklist With the Customer

Send the customer a copy of the finished checklist with readings and photos attached. It shows the steps they couldn't watch, like the pressure test and the charge adjustment. That record helps justify your price when a customer compares it with a lower bid.

Walk the Customer Through the New System

Use the closeout section as a script for the walkthrough. Show the customer the thermostat settings, the filter size and filter change schedule, and where the condensate drain runs. Customers who understand their system make fewer "is this normal?" calls.

Register the Warranty for the Customer

Many homeowners don't know their equipment needs to be registered to get the full parts warranty. Register it before you leave or by the end of the week, then send the customer the confirmation. It's a five-minute task that protects their investment and shows you followed through.

Use Install Readings to Set Up the Maintenance Visit

Install readings give the first tune-up a baseline to compare against. A tech can spot a drop in charge or a rise in static pressure because the starting numbers are on file. You can also offer an HVAC maintenance plan during the walkthrough and schedule the first visit before you leave.

How to Get Your Techs to Use the HVAC Install Checklist Consistently

Many teams have an install checklist, but techs stop using it once the steps feel familiar. They run the install from memory and tick every box in the truck afterward. So when another tech returns for a callback or the first tune-up, there's no record of the readings or line set decision to work from. The tech starts diagnosing from scratch, and the customer waits longer for a fix.

When you’re a small team, it’s easy to monitor every tech. That gets harder once you're a team of three or four techs working across different jobs each day. You need an automated system that builds the checklist into each job, so the steps and readings stay attached to the job record. Techs still take the readings, but you can see which steps are missing before the job gets invoiced.

Tired of checklists getting ticked in the truck after the job? Book a demo to see a FieldPulse install form that won't submit until every reading is in.

How FieldPulse Helps HVAC Teams Standardize Every Install

FieldPulse is field service management software for HVAC businesses with 5 to 200 employees, across commercial and residential work. You build your install checklist once, attach it to every install job, and your techs follow the same steps every time.

With FieldPulse, you can build an HVAC install checklist in Custom Forms, attach it to install jobs, and add it to your job status workflow. Each status shows techs the next step, and required fields keep them from submitting the checklist without key readings. Status updates sync in real time, so you or your office can see where every install stands.

Here’s how FieldPulse helps HVAC teams complete jobs and grow their business:

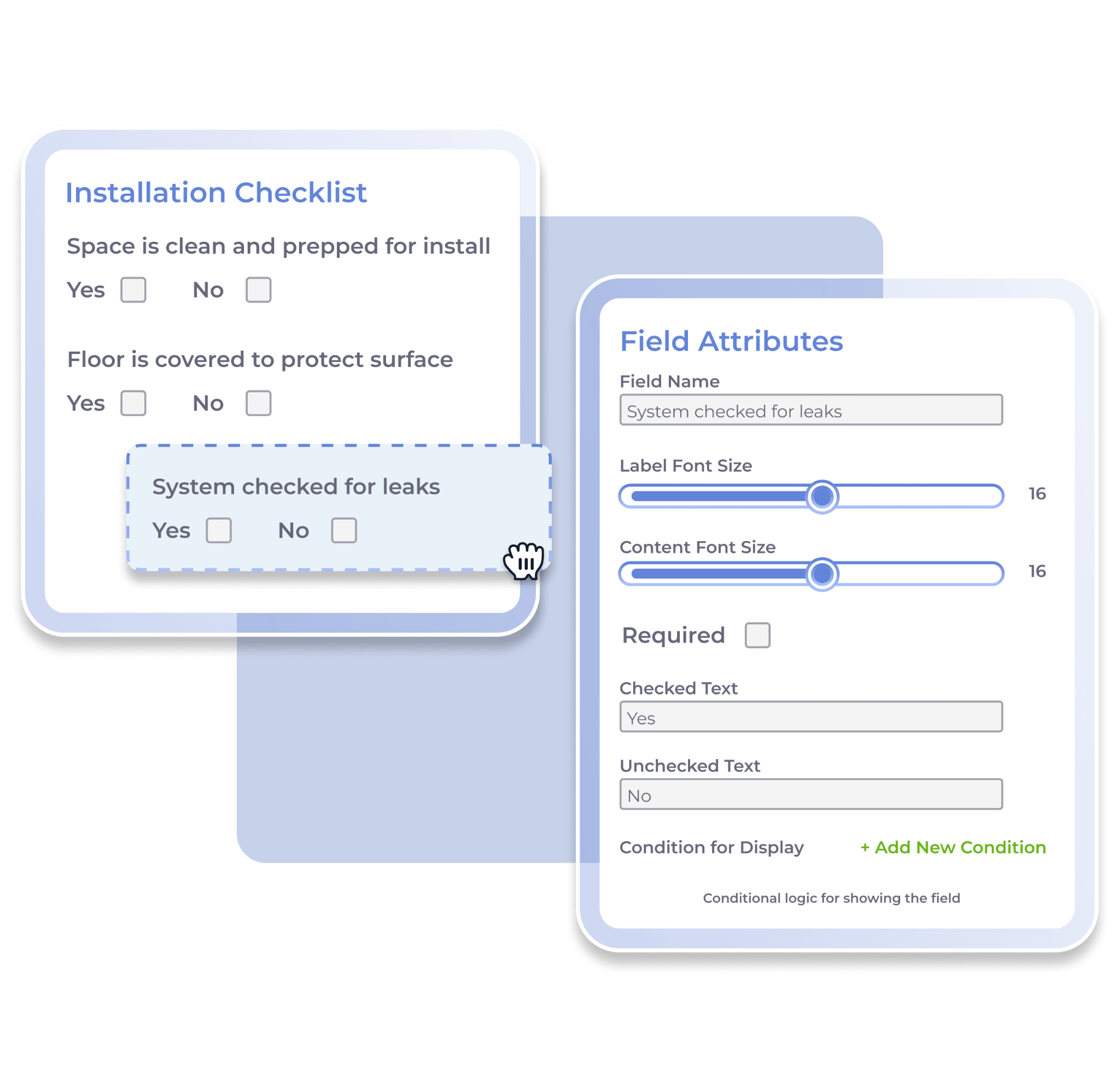

Custom Forms to Build Your HVAC Install Checklist

FieldPulse offers custom forms that let you build an HVAC install checklist or import the one you already use. You can add checkboxes, text fields, photo uploads, and a signature line for the customer. Set the reading fields as required, so techs can't submit the checklist with the vacuum or charge left blank. Conditional logic shows furnace fields like gas pressure and CO only on furnace installs.

Forms attached to jobs pull in customer and job details, so techs don't retype the address or equipment model on every install. They also work offline, which matters in attics and crawlspaces with no signal. Once the tech submits the form, it stays on the job record for warranty claims, inspections, and the first tune-up.

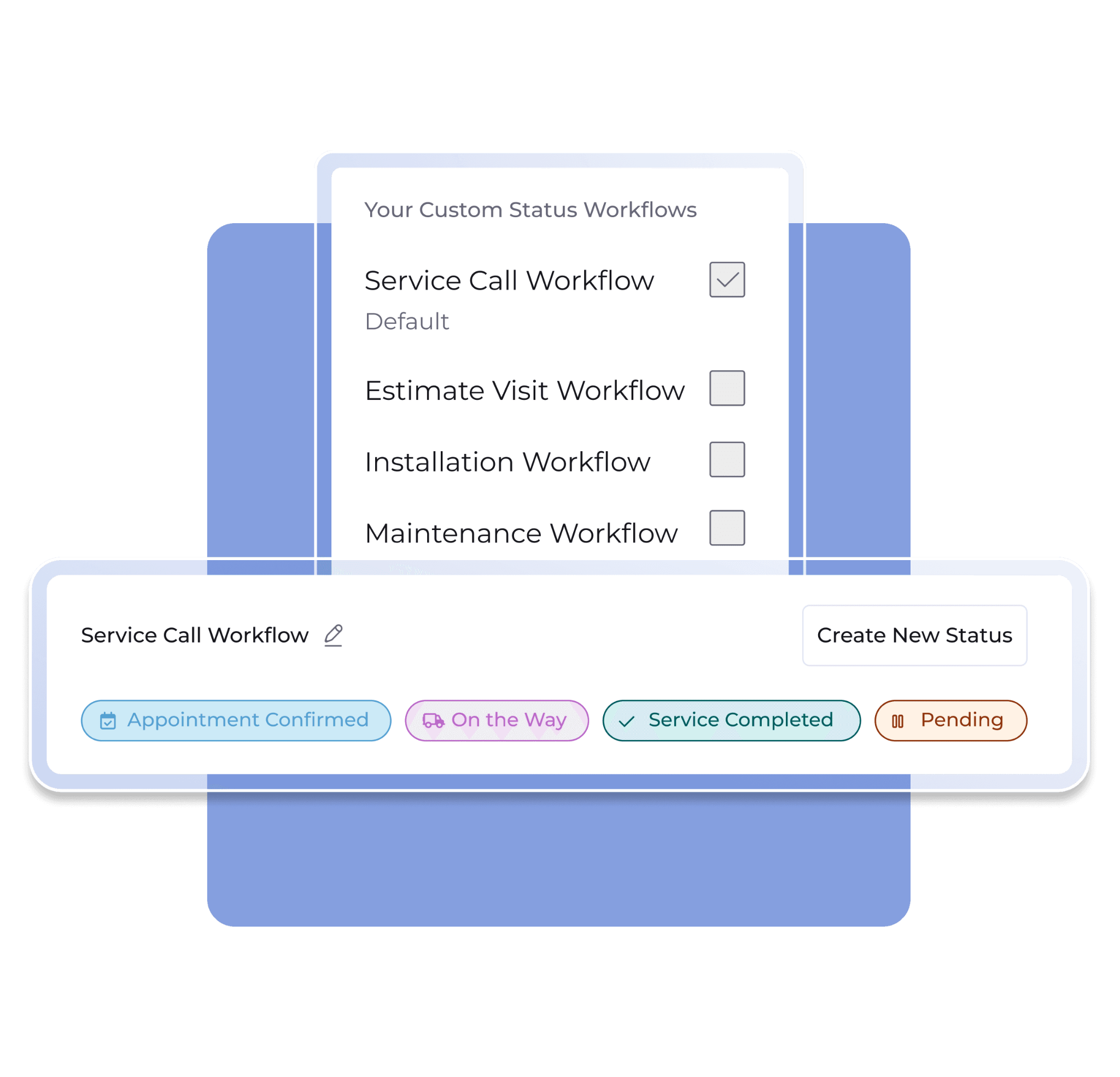

Custom Workflows to Standardize Every Install

FieldPulse supports custom workflows that you can use to map your install process as a series of custom job statuses, like Equipment Staged, Old Unit Removed, Evacuation, and Startup.

You can build a separate workflow for each install type, so AC changeouts and furnace installs follow their own steps. Each status includes written instructions for the tech, so the process doesn't depend on who's on the job.

Status changes can also trigger actions along the way. Moving a job to On the Way can send the customer an en route text, and marking it Completed can generate the invoice. Every install moves through the same steps, and you can see where each job stands without calling the tech.

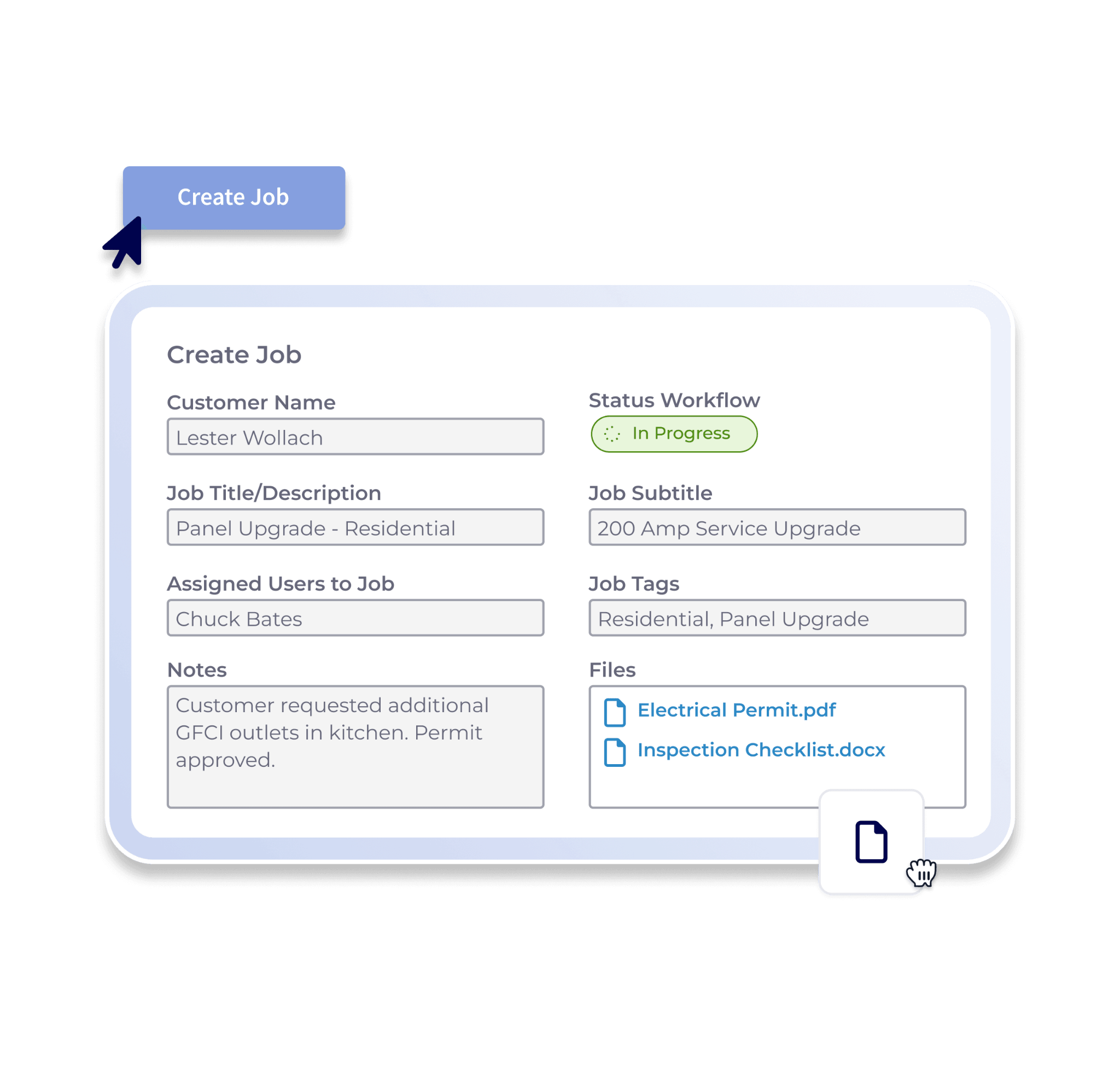

Job Management to Keep Records

Techs on a jobsite need complete context, such as job and customer details, to deliver quality service. But when job records are scattered across chats, paper checklists, and scribbled notes, techs show up without the details they need.

FieldPulse provides job management tools to keep every install on one job record. When a customer calls or books a job, you can create a job record and link it to the customer and estimate. You schedule the install and assign it to a tech or team. Assigned techs can see the job details, notes, and attached files in the mobile app when they arrive.

During the install, techs can add notes, comments, and photos to the same record from their phone. You can attach the permit, AHRI certificate, and warranty confirmation once they're ready. For example, if a tech is setting up a 3-ton AC, they can photograph the condenser data plate and note the line set length and charge added. Once the permit clears and the unit is registered, you attach both confirmations to the same job record.

FieldPulse also tracks time spent in each status and adds a location stamp as techs move through the workflow. When a tech returns for a callback or tune-up, the full install history is on the job record.

ClearPath to Guide Techs Through Each Install Step

FieldPulse’s ClearPath turns installation steps into guided instructions techs can follow on one screen. You can build a separate Status Action Flow for each install type, like an AC unit install or a furnace install. All of them run off the same Installation workflow.

Each status carries written instructions for that step, such as completing the install checklist before moving to the next status. Action buttons put tasks like opening the checklist or adding photos one tap away. On mobile, Focus View shows techs only the details that matter for the current status.

Once a flow is set up, you can add it to job templates so every new install starts with the right steps. New techs can follow its guided steps without learning the whole app on day one.

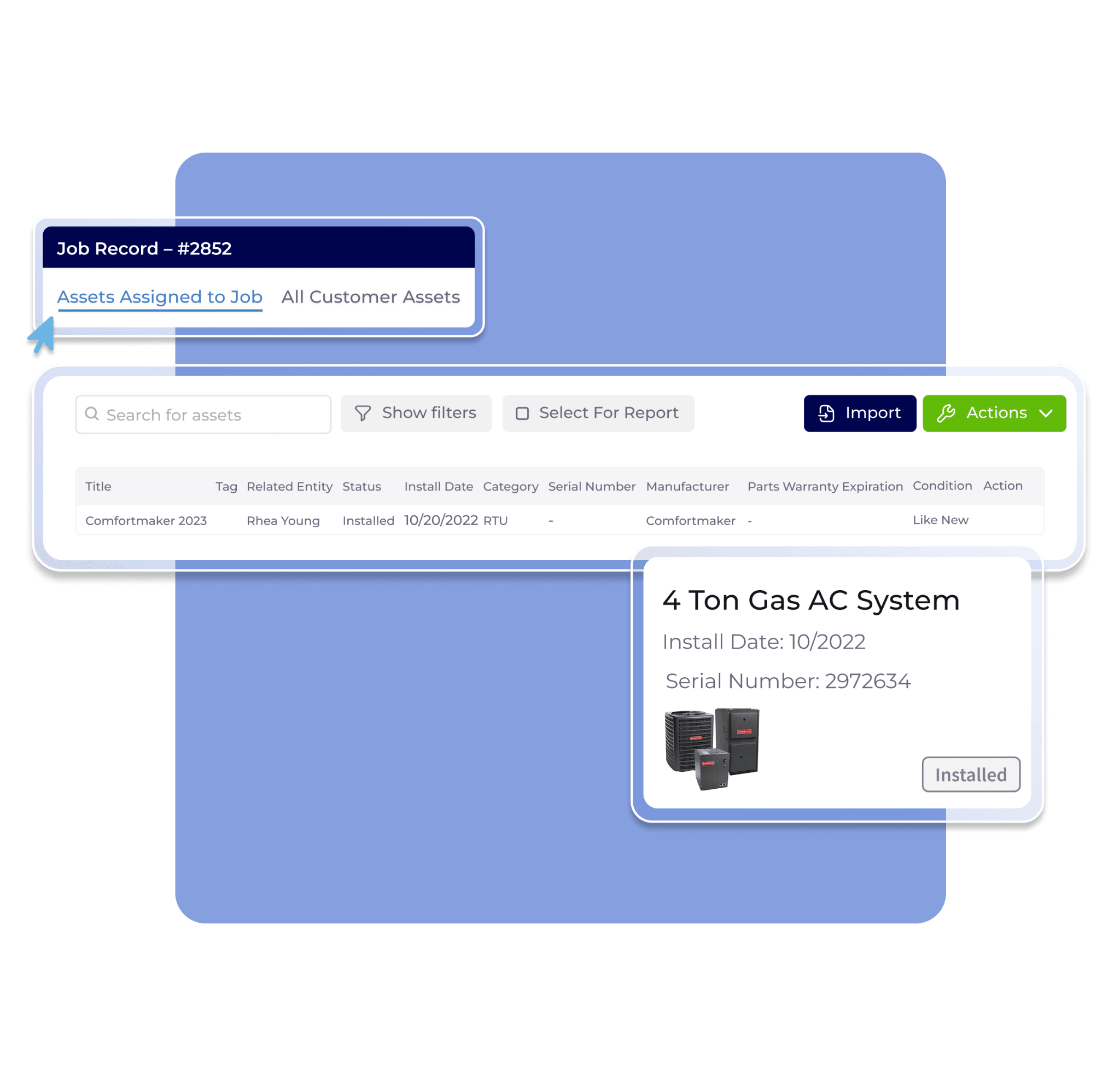

Equipment Tracking for Warranty and Service

Every tech needs to record the model, serial number, and warranty details during installation. That record is what the next tech checks when a part fails or the first tune-up comes around.

FieldPulse offers asset management that stores each installed unit as a customer asset, with its model, serial number, installation date, and warranty information.

Techs can create the asset from the job record while they're still on site. You can then add photos, comments, and files and set the unit's status to Installed. Once the asset exists, Custom Forms can pull its details into the checklist, so techs don't retype them on future service visits.

After the install, you can generate an asset report that gives the customer a reference for their new equipment. When the unit is due for service, creating a job from the asset record links the asset and any maintenance agreement tied to it.

Invoicing to Close Out Every Install Faster

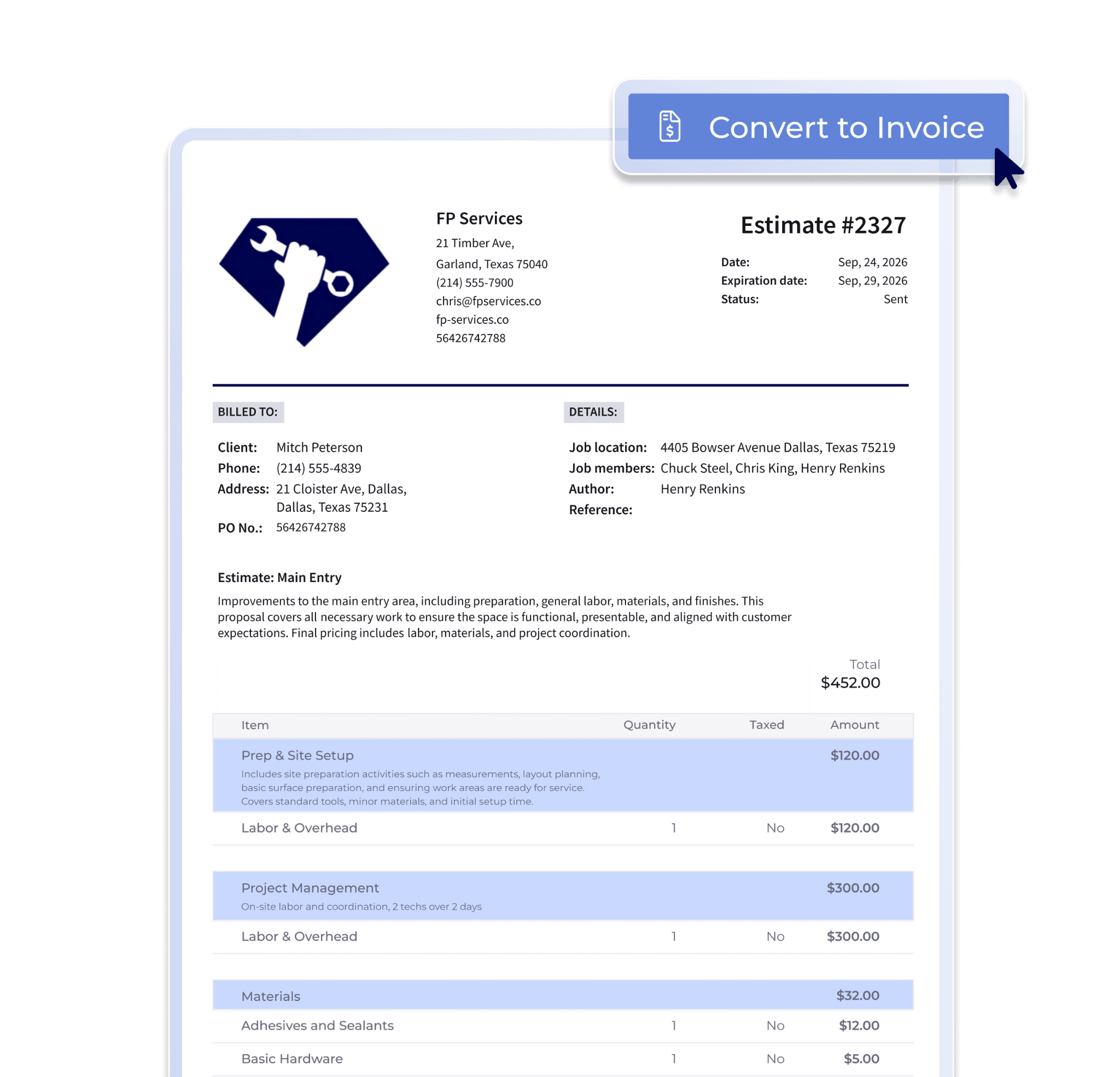

FieldPulse offers estimates and invoicing built into the job process. When a tech arrives at the job, they can build a quote from your pricebook and present good, better, and best options for the new system. The customer can sign and accept the estimate on-site, and a deposit payment creates a separate deposit invoice.

Once the installation is done, techs can convert the estimate to an invoice in one click. The platform carries over the customer, job details, and line items. Techs can attach photos and send the invoice by email or text.

With FieldPulse Payments, the tech can take the customer's card before leaving the driveway. If the customer pays later, a payment link and follow-up reminders keep the invoice moving without anyone chasing it.

Build Your HVAC Install Checklist Into Every Job With FieldPulse

An HVAC install checklist gives your team a standardized way to complete every job, without missing out on any steps. But as you book more jobs, managing these checklists becomes another task.

FieldPulse builds the checklist into each install job, so techs follow the same steps and record readings on site. The job record keeps photos, equipment details, and the invoice together for the next callback or tune-up. Setup takes some work up front, since you build the forms and workflows around your own process.

Book a demo to see how FieldPulse helps your team follow a consistent process on every HVAC install, with records you can pull up long after the job is done.

HVAC Install Checklist FAQs

What should an HVAC install checklist include?

An HVAC install checklist should cover six phases: pre-install planning, site prep and removal, equipment setting and connections, pressure testing and evacuation, startup, and closeout. Each phase lists the steps to complete and the readings to record, like final vacuum, charge added, and static pressure. The record backs up warranty claims and gives the first tune-up a baseline.

Who registers the equipment warranty after installation?

Many contractors register the equipment on the customer's behalf before closing out the job. Manufacturers often require registration within a set window, commonly 60 days, to activate the extended parts warranty. Sending the customer the confirmation shows that the step is done.

Do HVAC installs require a permit?

Most cities and counties require a permit to replace or install HVAC equipment. Requirements vary by location, so check with your local building department before the job. Some areas also require a final inspection after the install.

What's the difference between an install checklist and a commissioning report?

An install checklist covers every step of the job, including planning and closeout. A commissioning report focuses on startup readings that confirm the system performs as designed. Many contractors combine both into one document so the readings stay with the install record.

Can I add parts from an HVAC install checklist to the invoice?

Yes, FieldPulse allows techs to log the parts used on an install in a material list, then carry those items over to the invoice without re-entering them. You can also attach the completed install checklist to the invoice so the customer sees the work behind the bill.
